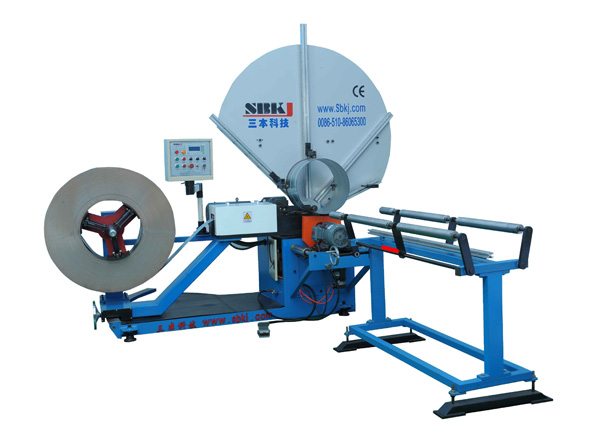

SPIRAL TUBEFORMER SBTF-1500
Features:
1. Special mould for various tube diameters, very easy to change and adjust, no need crane or too much manpower
2. Large diameter range

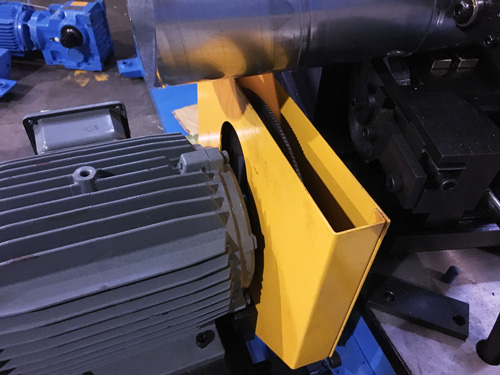

3. High speed synchro flying cutting system
4. PLC control, convenient operation
5. Light and small, site work
6. Perfect swage, without leakage
Technical data:
| Diameter |
￠80 mm – ￠1500mm |
||
|
Thickness of strip |
Galvanized steel |
0.4 -1.2mm |
|
|
Stainless steel |
0.4-0.8mm |
||
|
Width of strip |
Standard 137mm |
||
|
Working speed |
1-38m/min |
||
|
Lock seam |
Outside lock seam, on the inside on request |
||
|
Power |
Mainframe |
5.5Kw |
|
|
Cutting power |
4Kw |
||
|
Weight |
1708kg |
||
|
Dimension |
2700 mm×1560 mm×1950mm |
||
