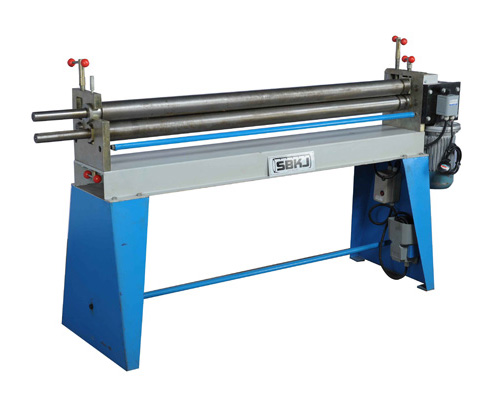

ELECTRICAL-DRIVEN BENDING MACHINE
Technical Data
|
Type |
SBW11G-2×1020 |
SBW11G-1.5×1270 |
SBW11G-1.2×1530 |
|
Max. Thickness |
2mm |
1.5mm |
1.2mm |
|
Max. Width |
1000mm |
1300mm |
1530mm |
|
Yield limit |
245mm |
245mm |
245mm |
|
Min. diameter |
100mm |
100mm |
100mm |
|
Top roller diameter |
73mm |
73mm |
73mm |
|
Bottom roller diameter |
73mm |
73mm |
73mm |
|
Power |
1.5kw |
1.5kw |
1.5kw |
|
Weight |
220kg |
240kg |
280kg |
|
Dimension |
1540×550×1110mm |
1780×550×1110mm |
2040×550×1110mm |
