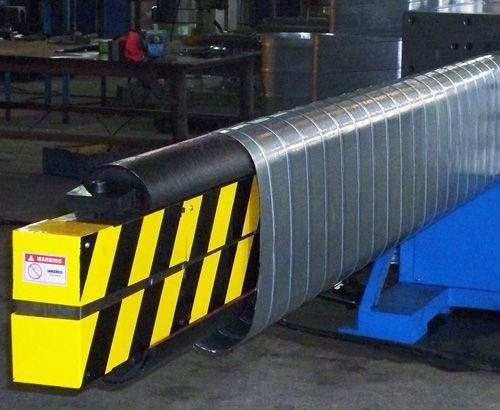

Oval Machines

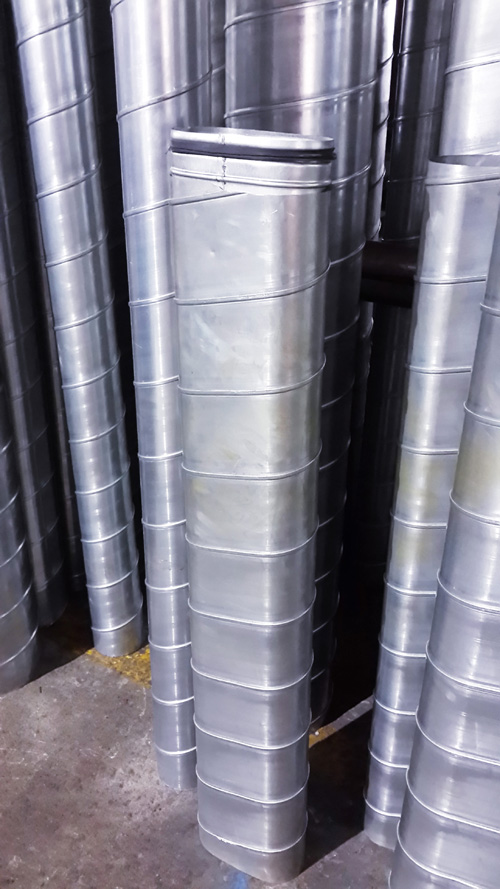

flat-oval ducts. Machine control is by PLC, and the LCD unit on the operator‘s panel stores all set parameters for easy recall by the operator when required.
Technical data
|
Thickness
|
0.4 -1.2mm |
|
Max. duct length |
3100mm |
|
Arm range |
Minimum diameter 330mm |
|

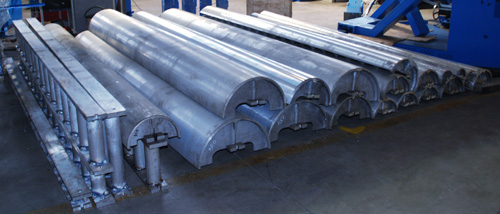

Moulds |
￠150、￠200、￠250、￠300、￠350、￠400、￠450、￠500 |
|
Tray |
50、100、200、300、400、500、600mm |
|
Power |
18.5Kw |
|
Weight |
2720kg |
|
Dimension |
5630 mm×1250 mm×1130mm |
