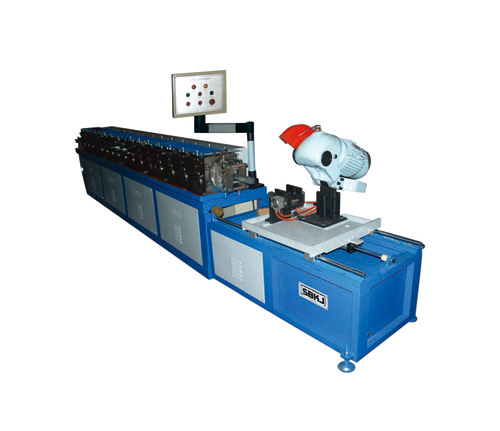

TDC FLANGE FORMING MACHINE SBTDC
Technical data
|
Type |
Rolls Shape |
Strip Width(mm) |
Thickness(mm) |
Motor Power(Kw) |
Weight(Kg) |
Dimension(mm) |
|
SBTDC-20A |
|
89 |
0.8 |
3 |
2000 |
2800×600×1150 |
|
SBTDC-25A |
99 |
0.8 |
3 |
2000 |
2800×600×1150 |
|
|
SBTDC-30A |
121 |
1.0 |
3 |
2200 |
3000×600×1150 |
|
|
SBTDC-35A |
131 |
1.0 |
3 |
3000 |
3200×600×1200 |
|
|
SBTDC-40A |
146 |
1.2 |
4 |
3000 |
3200×600×1200 |
|
|
SBTDC-20B |
|
86 |
0.8 |
3 |
2000 |
2800×600×1150 |
|
SBTDC-25B |
96 |
0.8 |
3 |
2000 |
2800×600×1150 |
|
|
SBTDC-30B |
118 |
1.0 |
3 |
2200 |
3000×600×1150 |
|
|
SBTDC-35B |
128 |
1.0 |
4 |
3000 |
3200×600×1200 |
|
Type |
Name |
Capacity |
Size |
Shape |
|
T-20DC |
Duct comer |
2.5mm |
a=95mm |
|
|
T-30DC |
Duct comer |
3mm |
a=105mm |
|
|
T-40DC |
Duct comer |
3.5mm |
a=123mm |
|
|
LT-30 |
Duct comer |
3mm |
a=105mm |
|
|
T-35DC |
Duct comer |
3mm |
a=106mm |
|
|
BC-10 |
Duct clip |
5mm |
|
|
